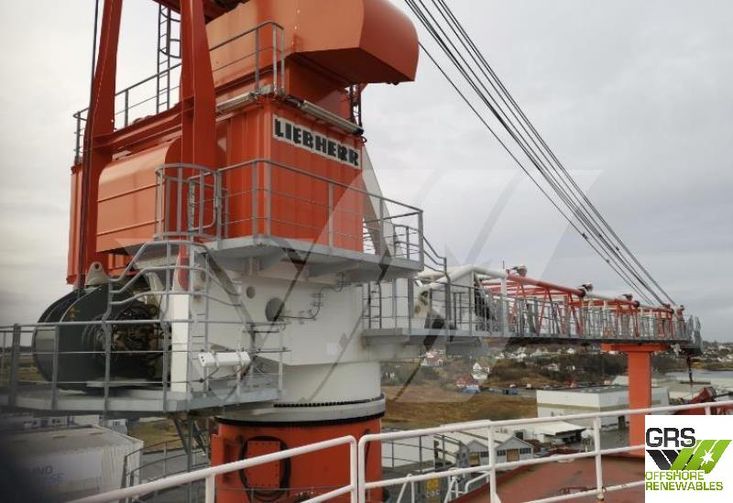

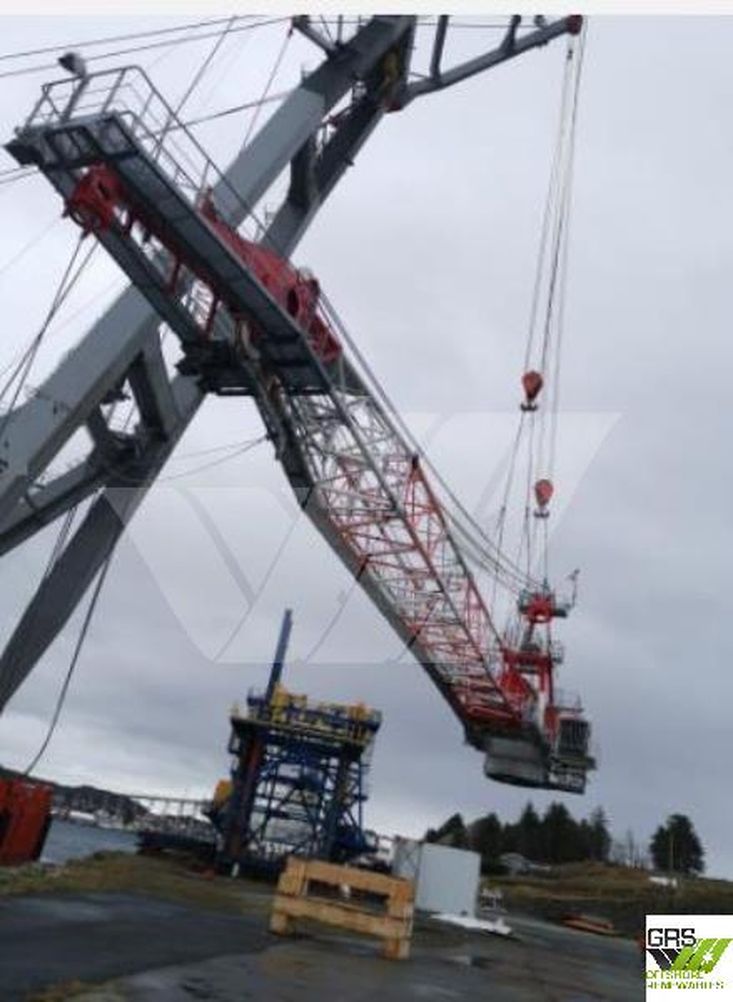

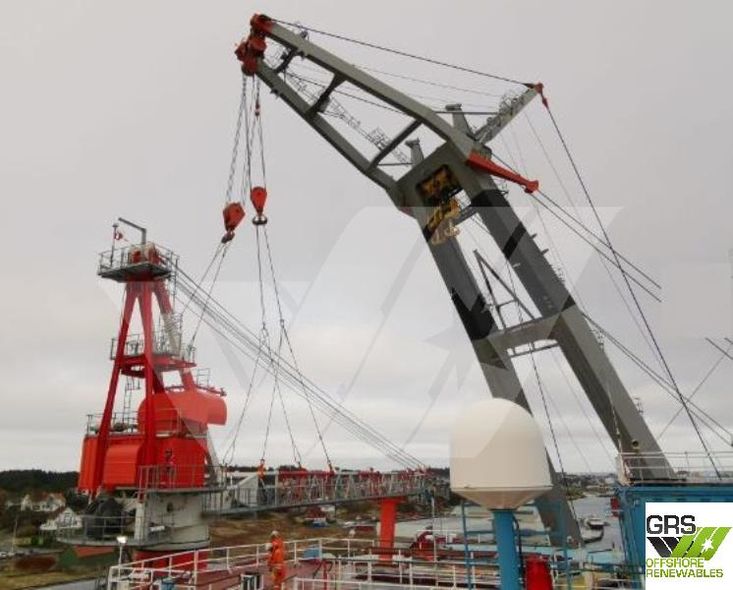

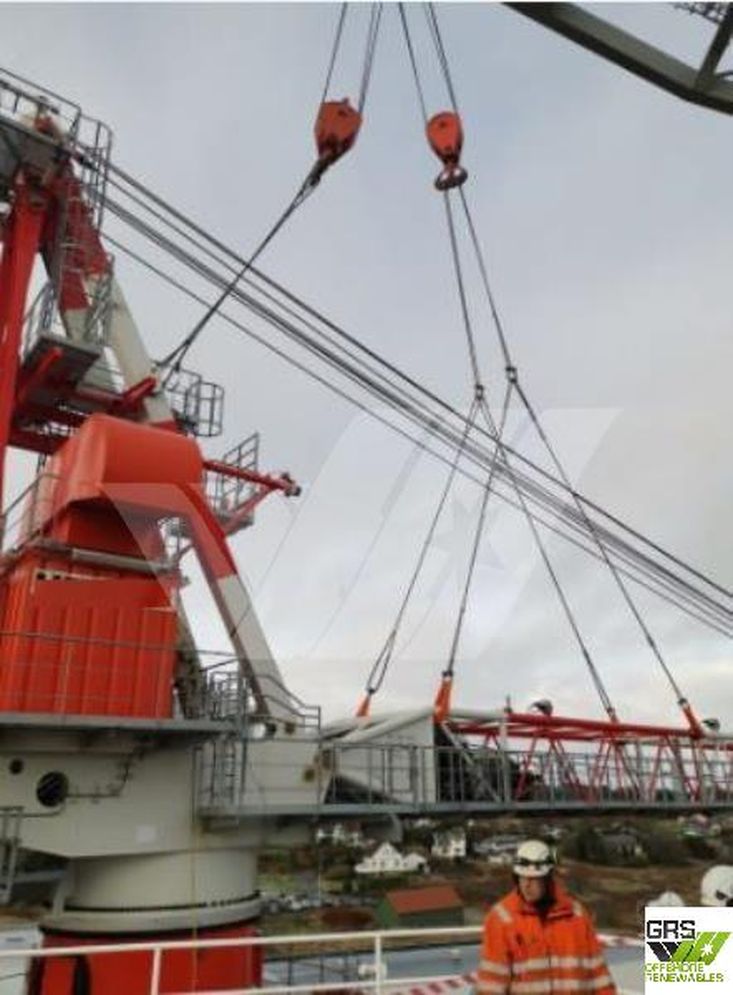

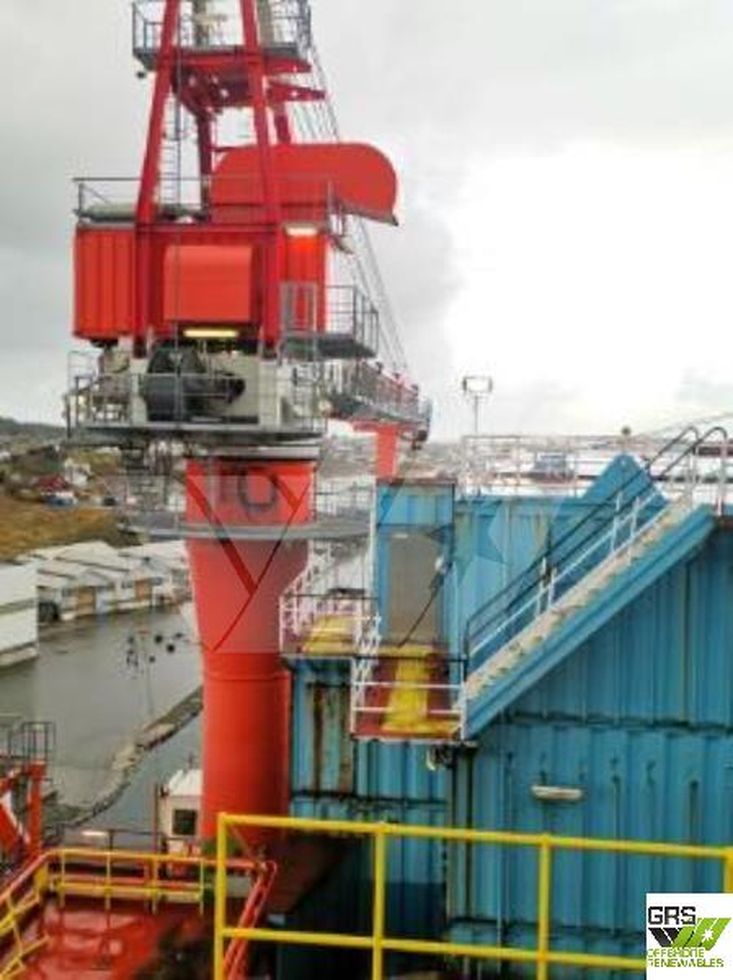

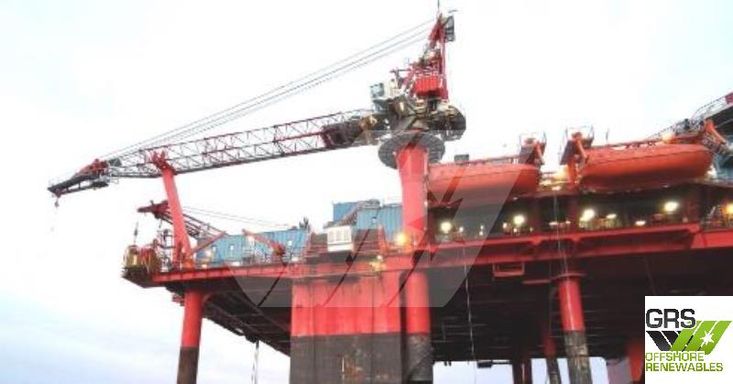

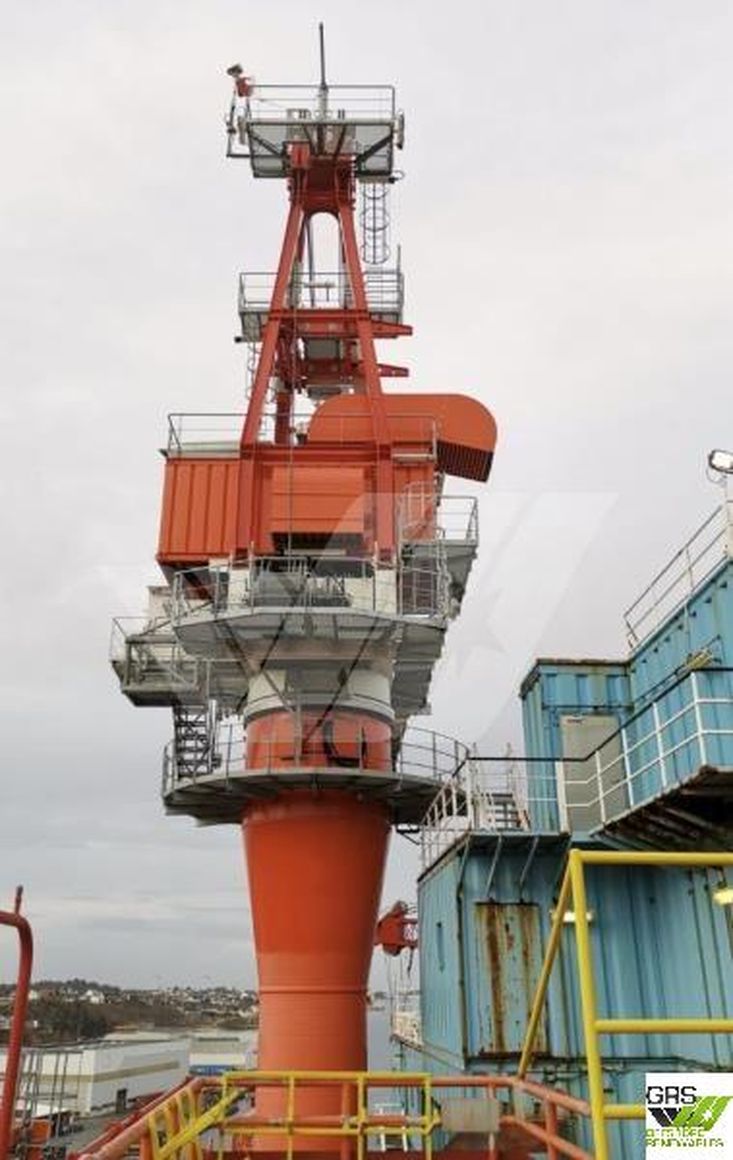

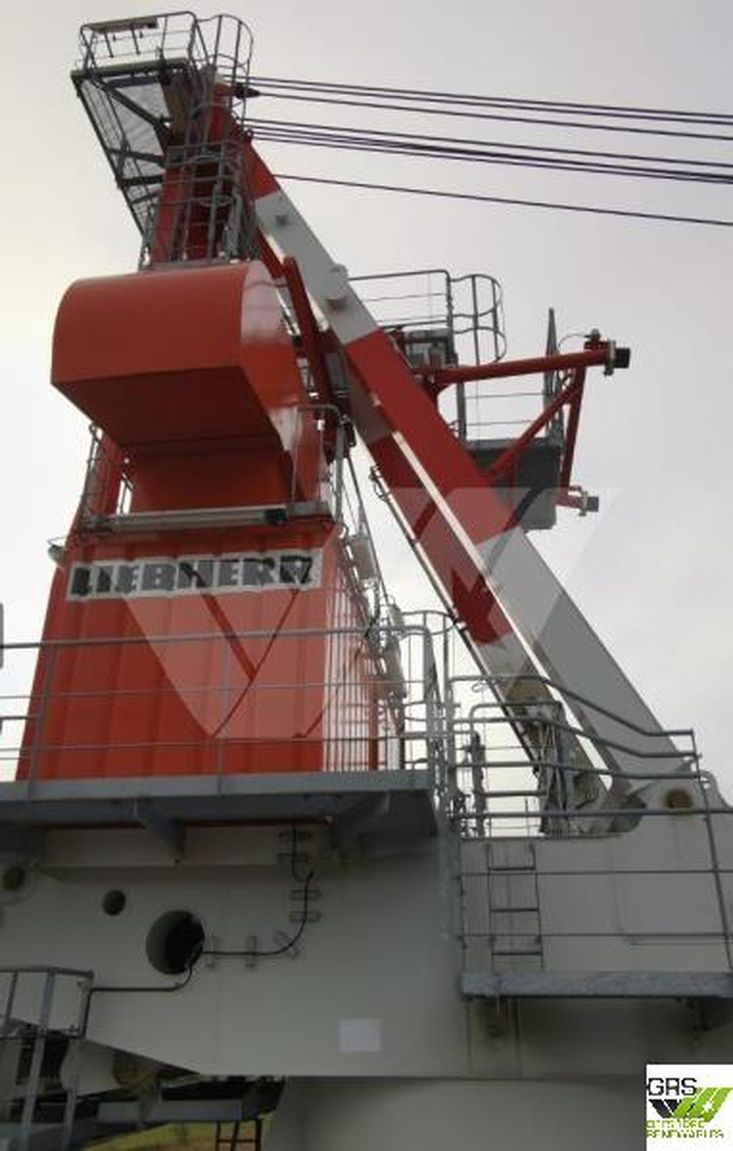

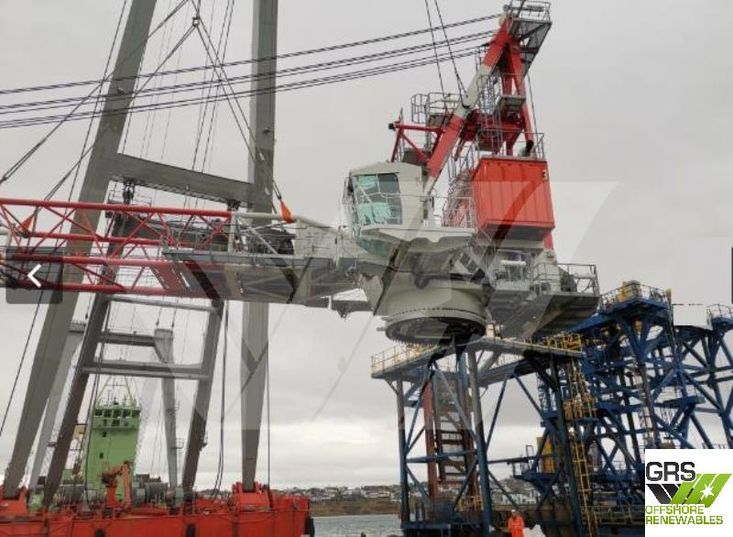

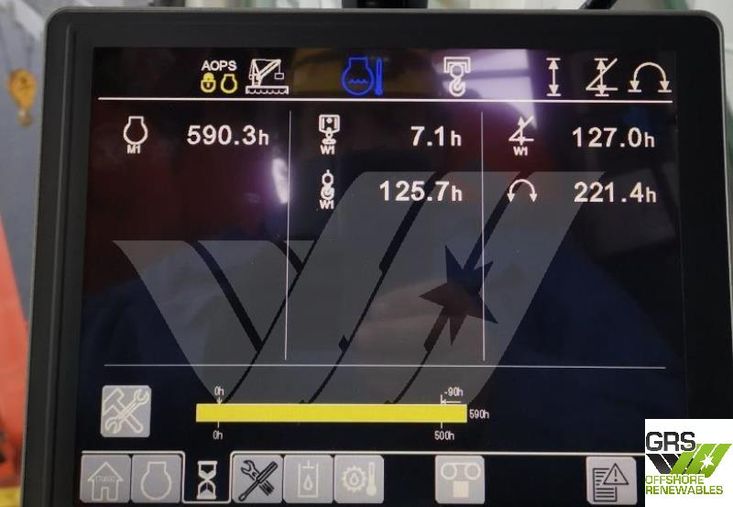

LIEBHERR BOS 2600-25 D Lit offshore crane. Excellent overall condition. Only 590 hours on the engine. The crane is located on key-side in Norway – readily prepared for quick pickup/installation by single lift.

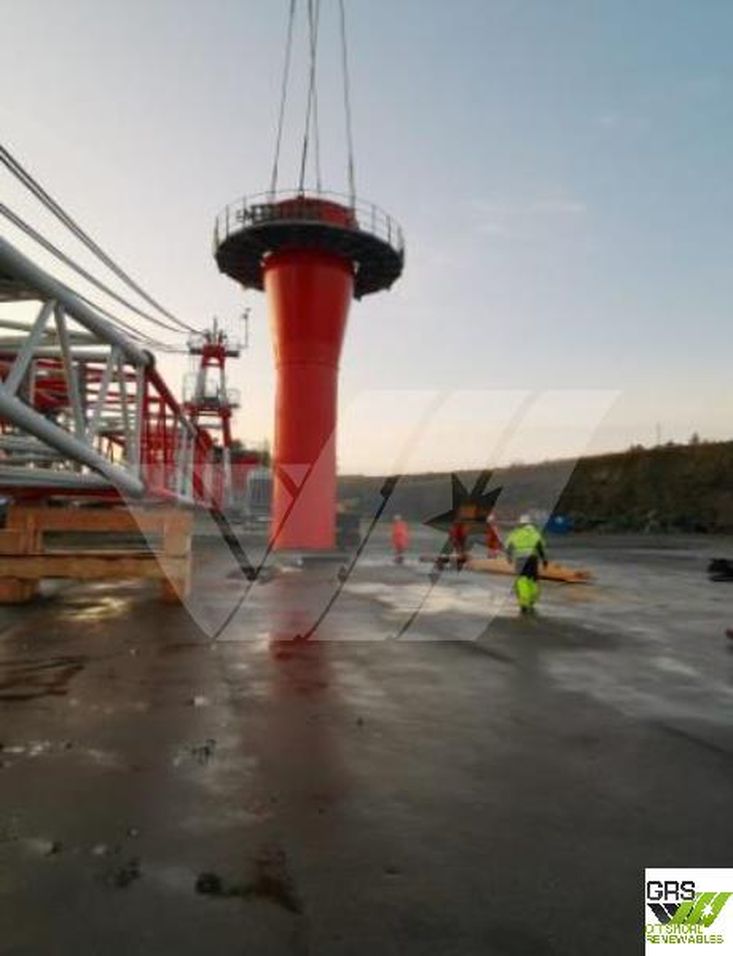

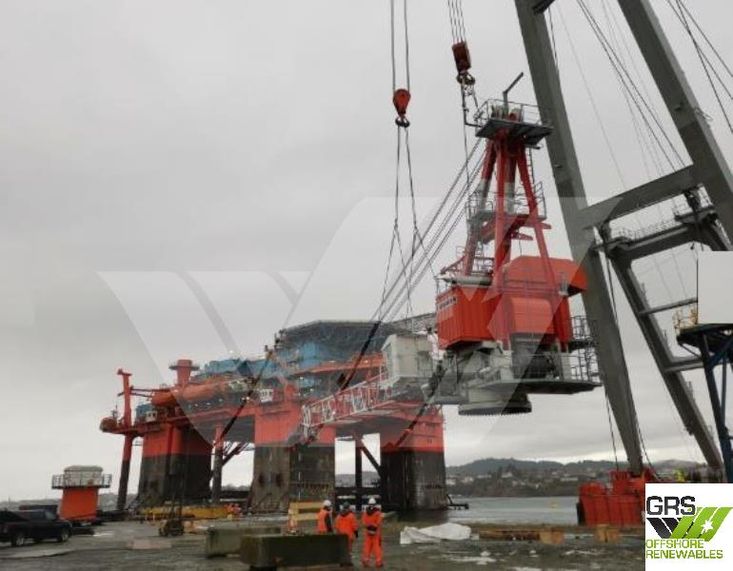

The crane is prepared for a single lift installation.
Upon request the actual lifting capacity of 25 to can easily be increased by upgrade to 2 or 3-Falls hook reeving. A (conical) pedestal adapter is available. A pedestal with a length of 9 m is available.

DESIGN CRITERIA

Design Criteria, Rules, Regulations
API (American Petroleum Institute) – Specification 2C for Offshore Pedestal Mounted Cranes, 7th Ed, 2012

Certifying Authority: ABS
Standards and Norms: DIN, ISO, IEC, EN, FEM
Design temperature: -20 °C
Wind operating conditions operating: 25 m/sec
Allowable Installation Inclination: 3° (heel) / 3° (trim)

HAZARDOUS AREA RATING
Crane, Pedestal Adapter and Power Pack safe area
Crane Boom and Aviation Lights on Crane safe area

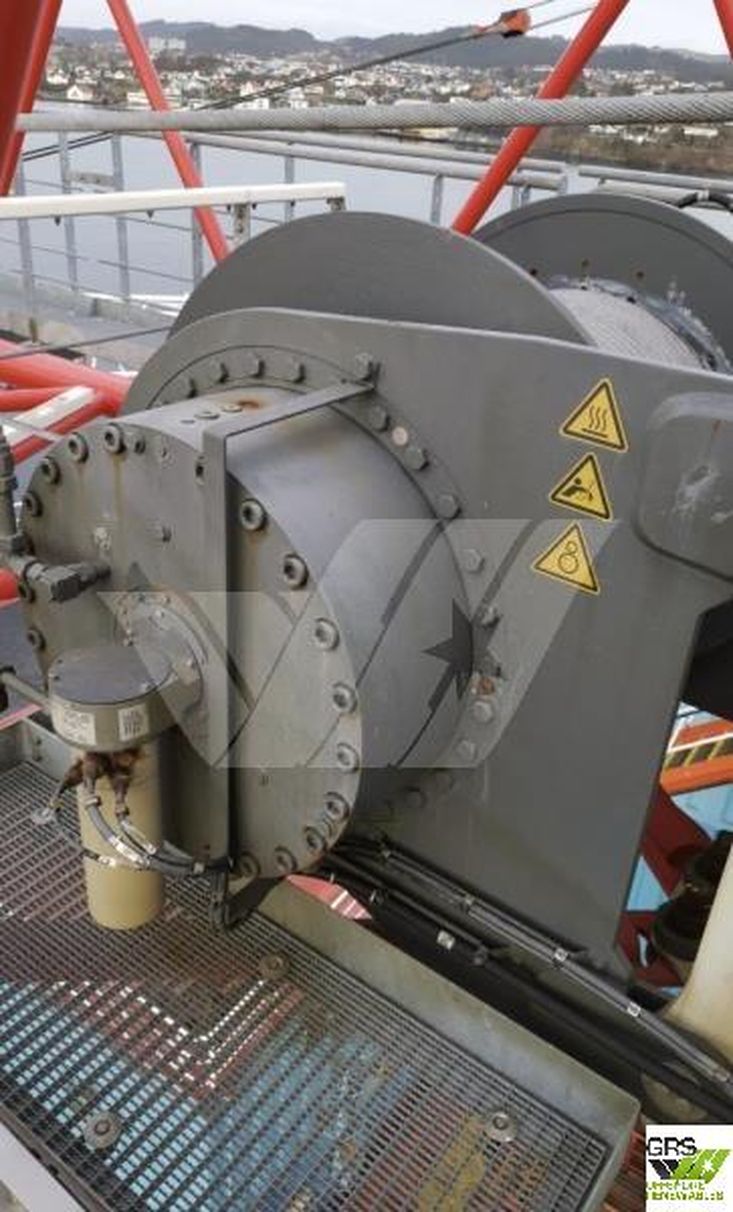

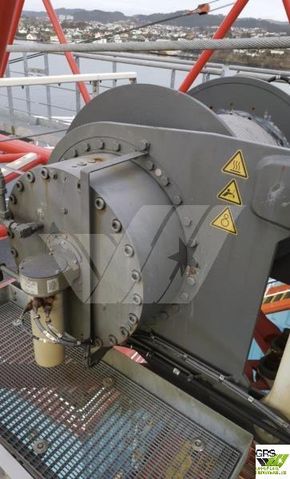

MAIN HOISTING GEAR
Max. winch capacity (line pull): 25 metric tonnes
Reeving: 1-fall
Personnel Lift: N/A
Hook Velocity, empty hook: 134.0 m/min
Hook Velocity, SWL: 32.0 m/min

AUX. HOISTING GEAR
Max. winch capacity (line pull): 15 metric tonnes
Reeving:1-fall
Personnel lift:4 metric tonnes
Hook Velocity, empty hook: 160.0 m/min
Hook Velocity, SWL: 55.0 m/min

SLEWING GEAR
Slewing speed: 0 – 0.61 rpm
Slewing range: 360°continuous
Brake system internal spring loaded multi disc brakes

LUFFING GEAR

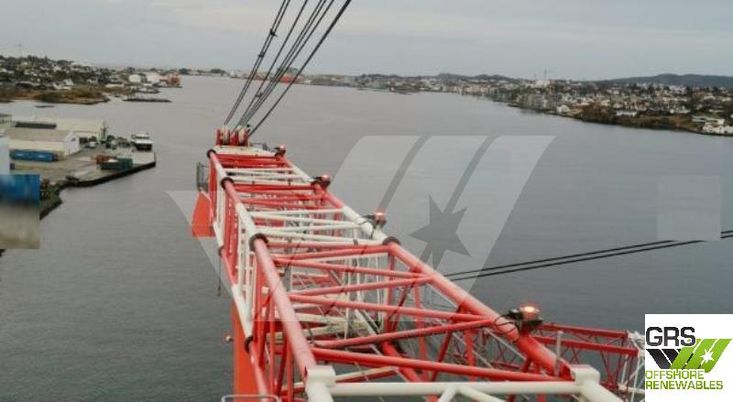

Maximum operating radius main hoist/aux. hoist: 38 m / 43 m
Minimum operating radius main hoist/aux. hoist: 9,6 m / 11,3 m

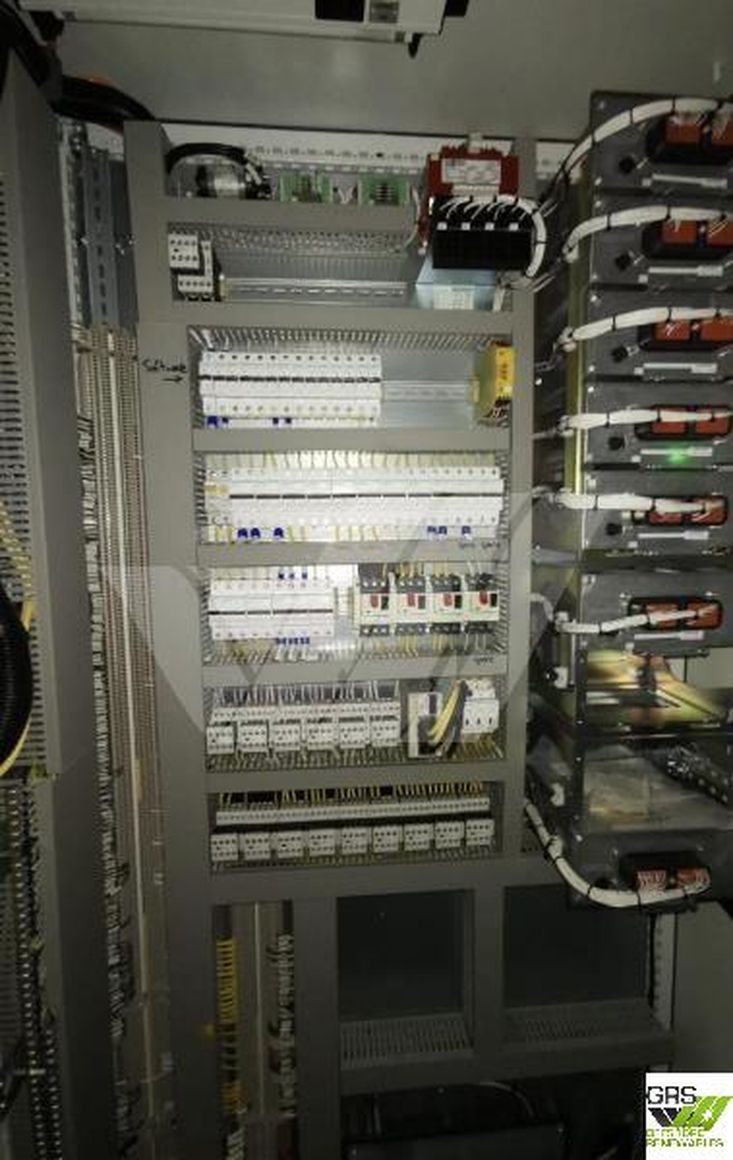

ELECTRIC SYSTEM

Electric power transfer slip ring collector column carrier

Main power supply 1: N/A
Main power supply 2: N/A
Aux. power supply: 480V / 60Hz / 3ph
Emergency power pack supply: 230V / 60Hz / 3ph
UPS: 230V / 60Hz / 1ph

Electric cables Liebherr standard, marine cables, flame retardant according IEC 331 and 332; armoured cables according LIEBHERR standard
Heating driver’s cabin
Lighting cabin, slewing column, machinery compartment, access route
Floodlights 2x boom head, 2x LHS and RHS cabin level, 1 x auxiliary boom head
Aircraft warning lights 1x main boom head, 1x aux. boom head, 1x on top of A-frame, 4x boom

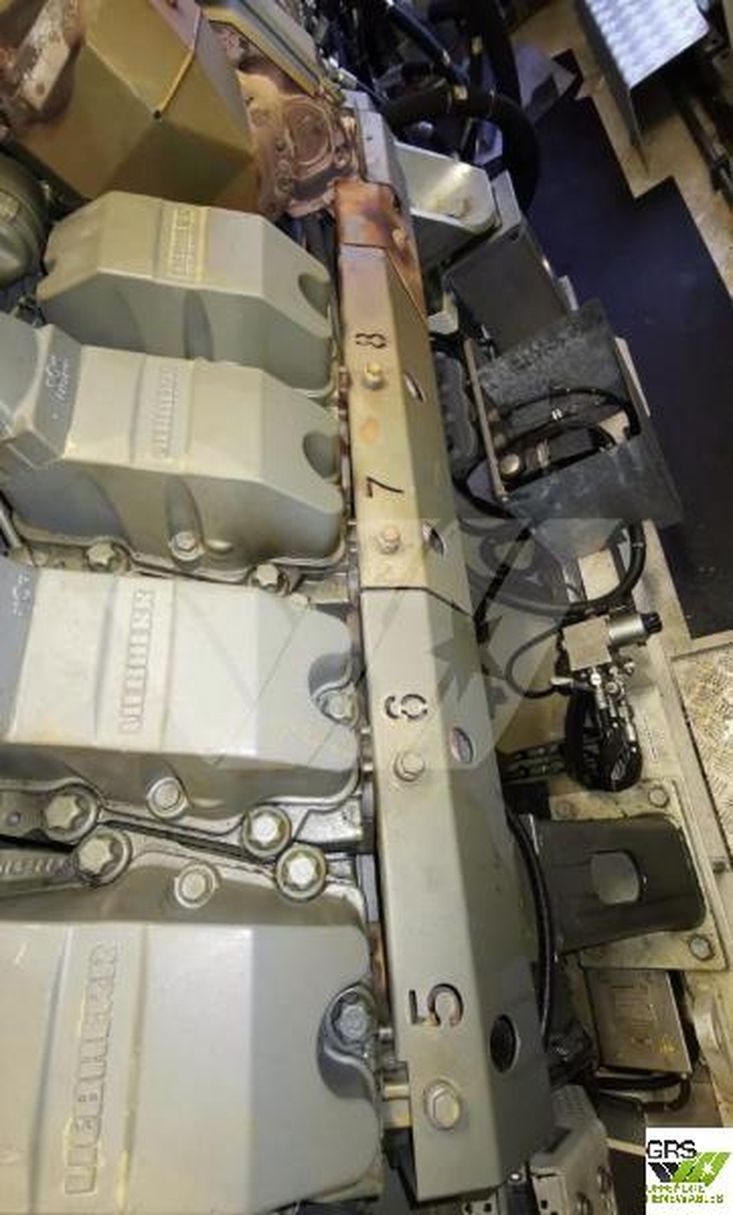

PRIME MOVER
Type LIEBHERR Diesel Engine (for safe area only)
Power Rating 1×450 kW
Starter Electric Starter

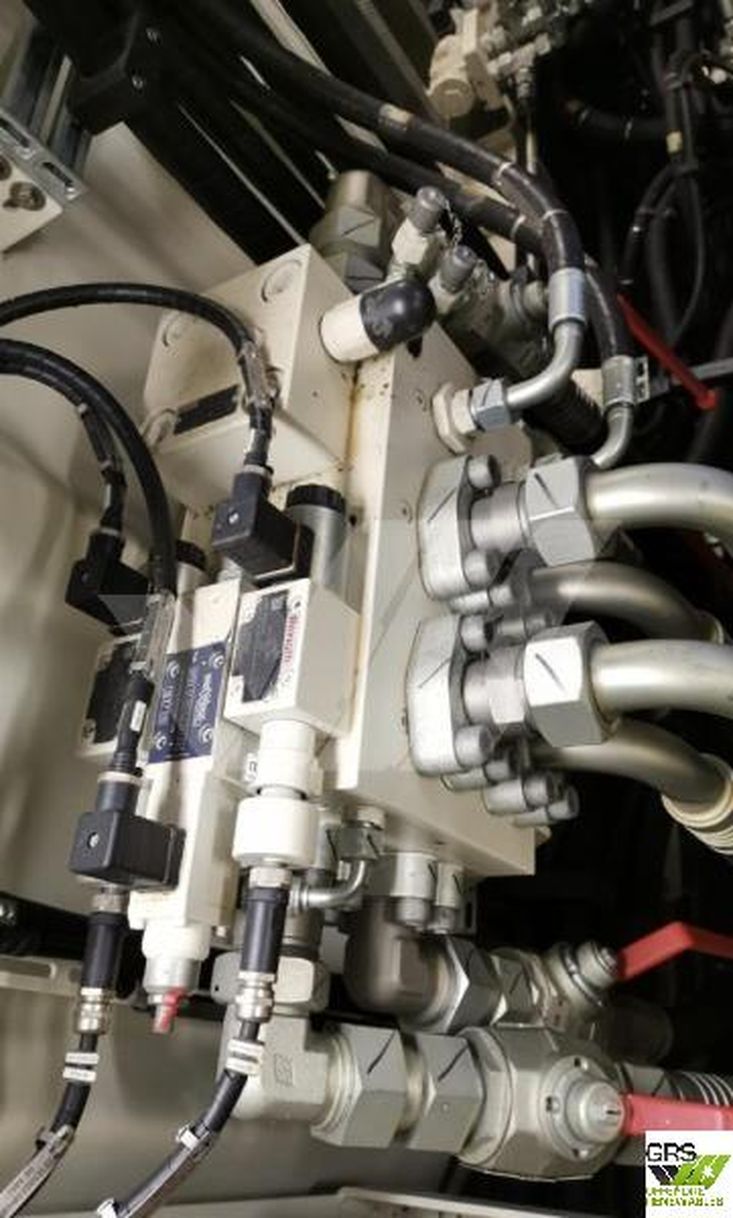

HYDRAULIC SYSTEM
Pumps variable displacement, axial piston type (A4VG)
Motors fixed displacement, axial piston type (A2FM)
Hydraulic system closed loop type system, separate loops for hoisting, slewing and luffing
Simultaneity of motions 100% hoisting + 50% slewing or 100% hoisting + 50% luffing or 3 motions at full load and reduced speeds
Hydraulic lines flexible, steel armoured hoses
Fittings Stainless Steel (AISI 316) – outside covered with “Denso Tape”
Hydraulic oil tank Stainless Steel, outside not painted

SAFETY RELATED DEVICE

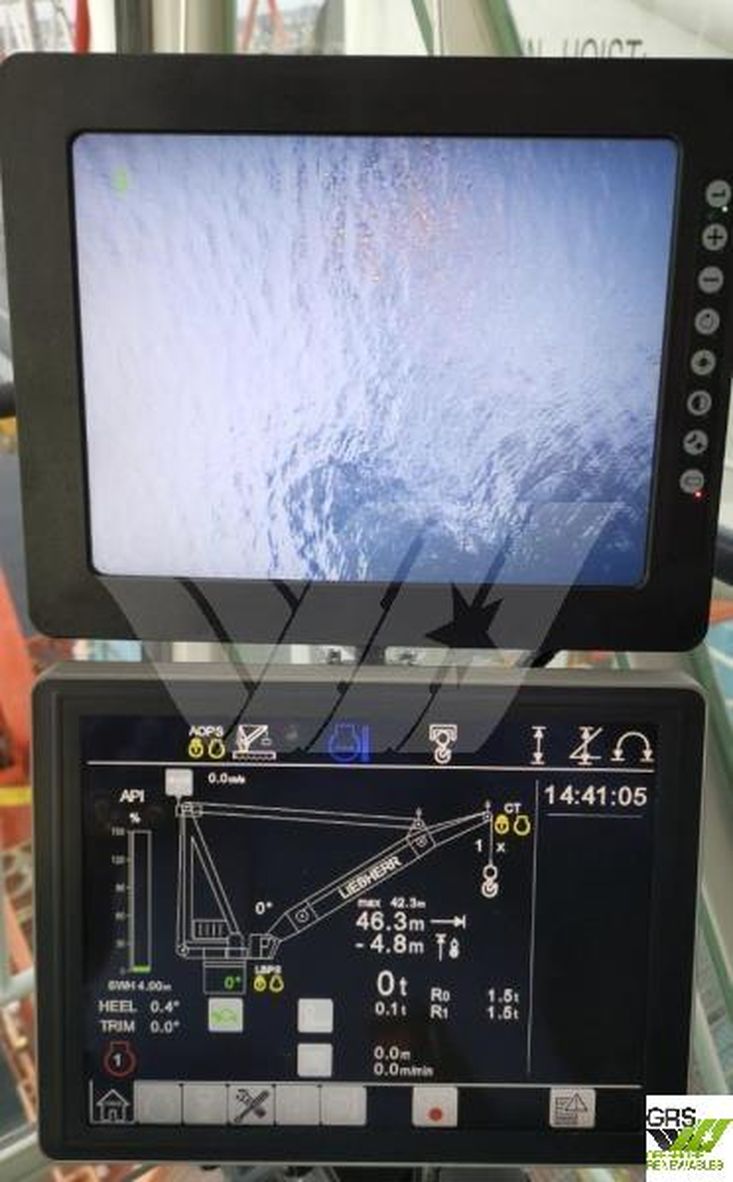

Safe Load Indication System Litronic©
Load limiting device Litronic©
Load data recorder Litronic©
Constant Tension System (CT) Litronic©
Automatic Gross Overload Protection System (AOPS) Litronic©
Manual Gross Overload Protection System (MOPS) electric/hydraulic
Emergency Lowering System (ELS) Hydraulic
Limit Switch System for Hoisting Gear Electric
Limit Switch System for Luffing Gear Electric
Limit Switch System for Slewing Gear Electric
Warning horn Electric
Slack Rope Protection System Litronic© (Hoist winches only)
CCTV mounted on boom head
CRANE CONTROL SYSTEM
Type LIEBHERR Litronic ©

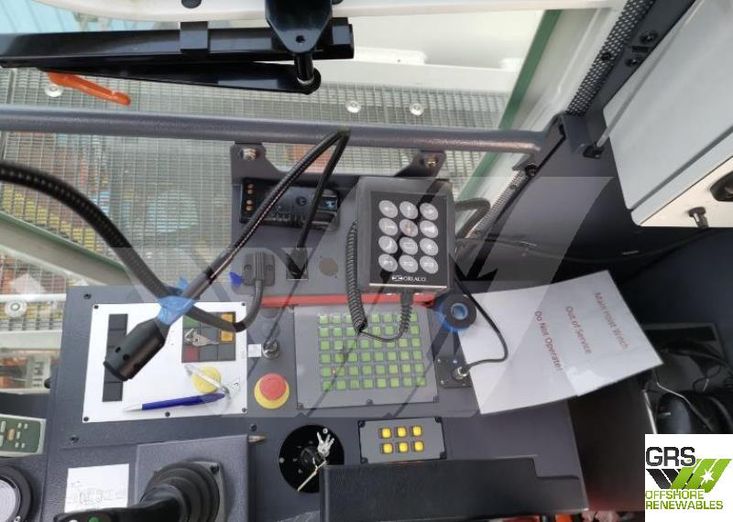

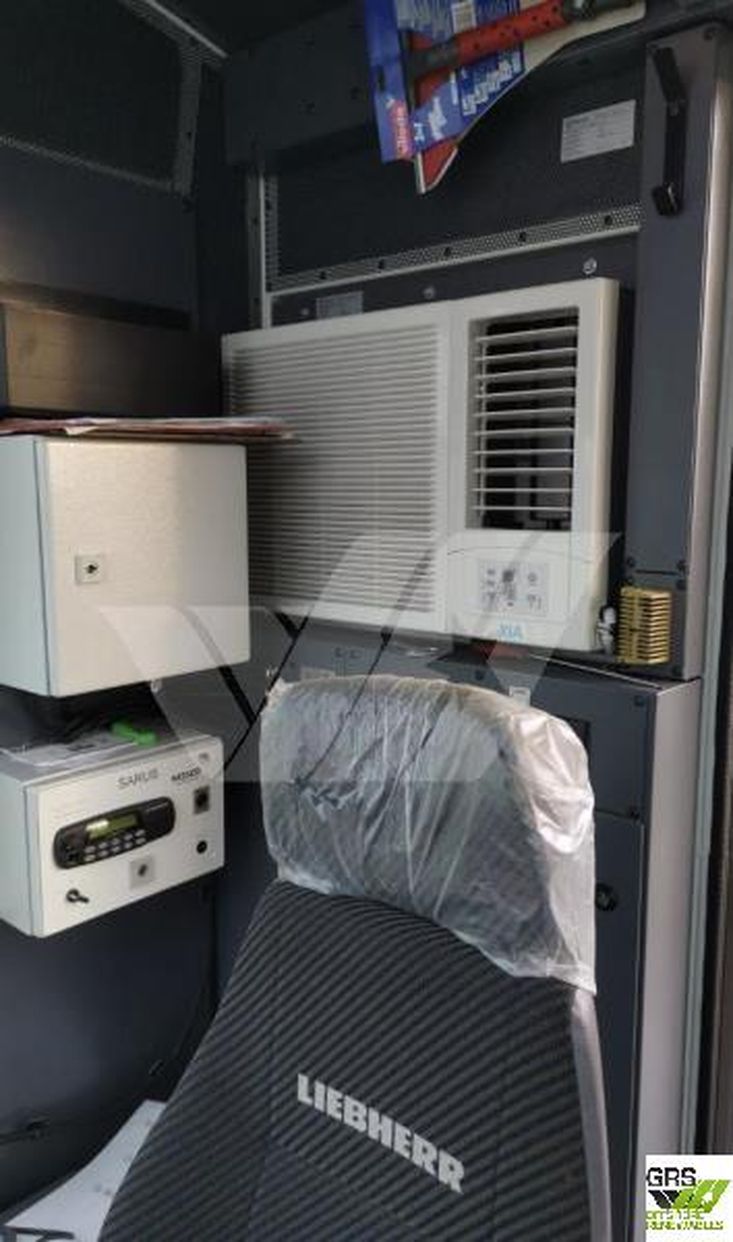

DRIVER’S CABIN
Type heated, motorised windscreen wiper, A/C unit, reading lamp, dimmable cabin lighting
Noise level 65 dB(A) inside cabin with door and windows closed at full power take off.
Location left hand side (LHS)

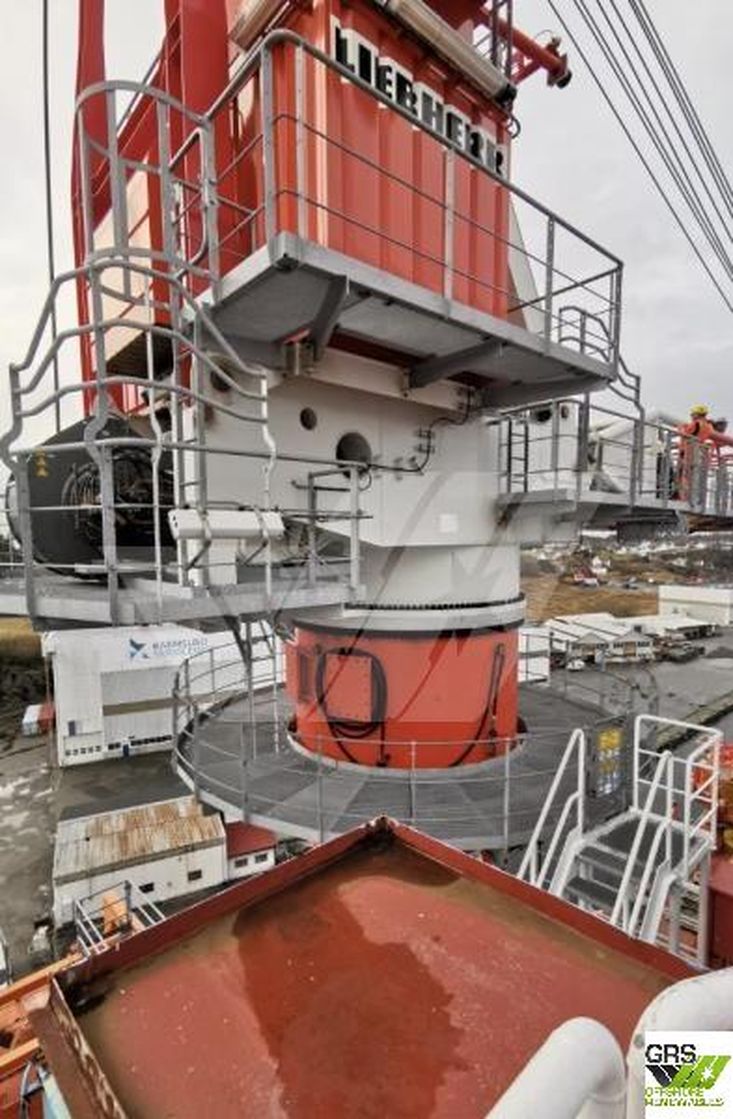

PLATFORMS /WALKWAYS
Boom boom walkway with railing on right hand side (RHS)
Circumferential Platform around Pedestal Adapter yes

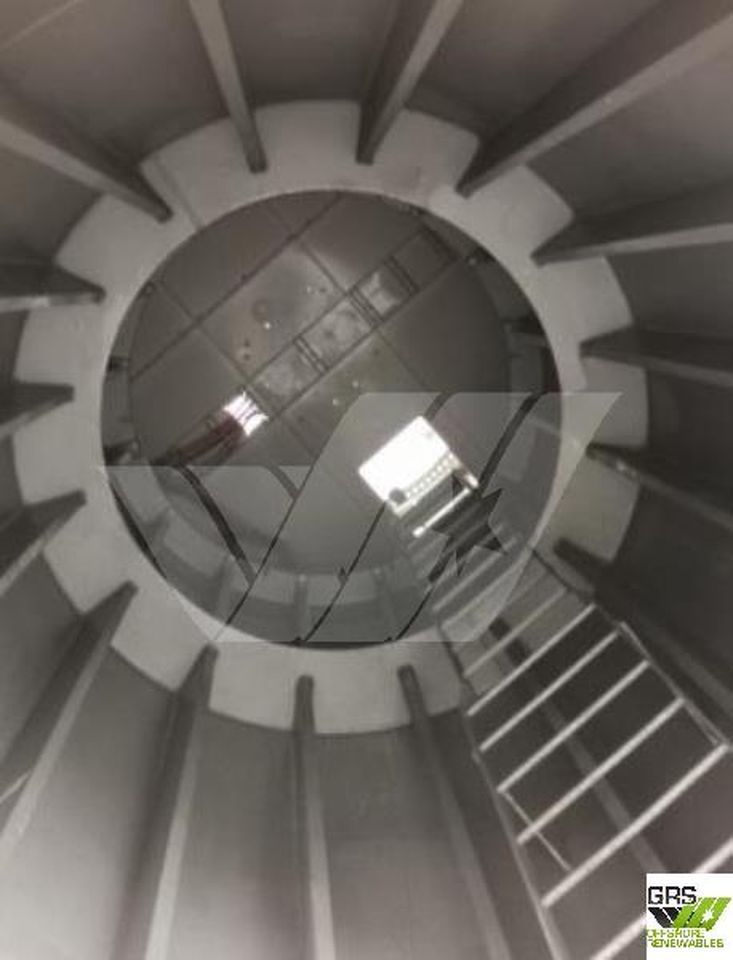

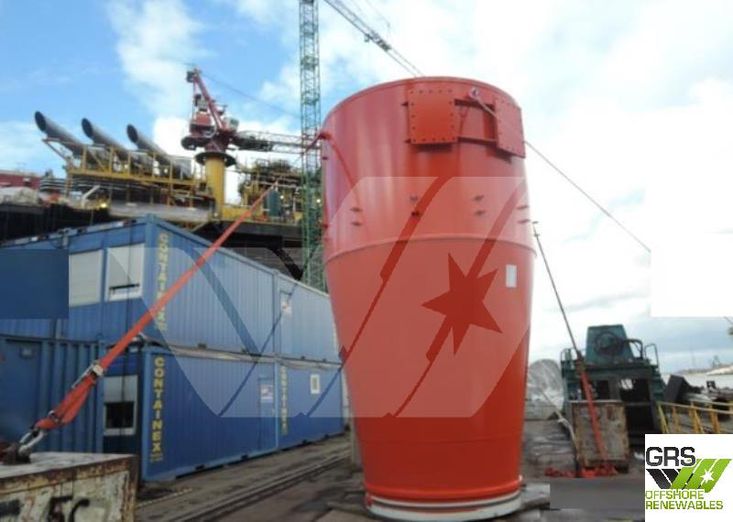

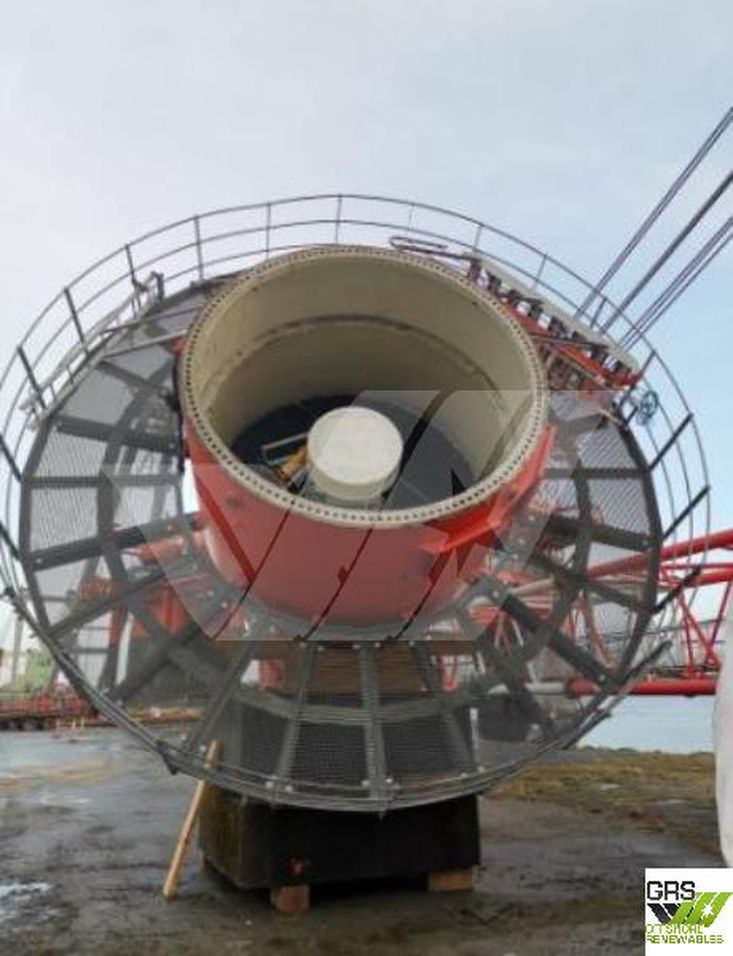

OPTION: PEDESTAL ADAPTER Conical
Outer diameter, lower interface: 3435 mm
Outer diameter, platform interface: 2300 mm
Height:6070 mm

WEIGHT OF CRANE COMPONENTS (Preliminary data)
Slewing Column + A-frame: 67.600 kg
Boom: 39.800 kg
Pedestal Adapter: 19.000 kg
Main Hoist Hook: 1.000 kg
Aux. Hoist Hook: 600 kg
Main Hoist Rope: 1.471 kg
Aux. Hoist Rope: 746 kg
Luffing Rope:3.553 kg
Crane Complete: 126.400 kg
– subject to engineering modification –
LOA 38 m
Beam 10 m

Class : American Bureau of Shipping

1 Crane / Gear installed with a max lifting capacity of 25 tons
