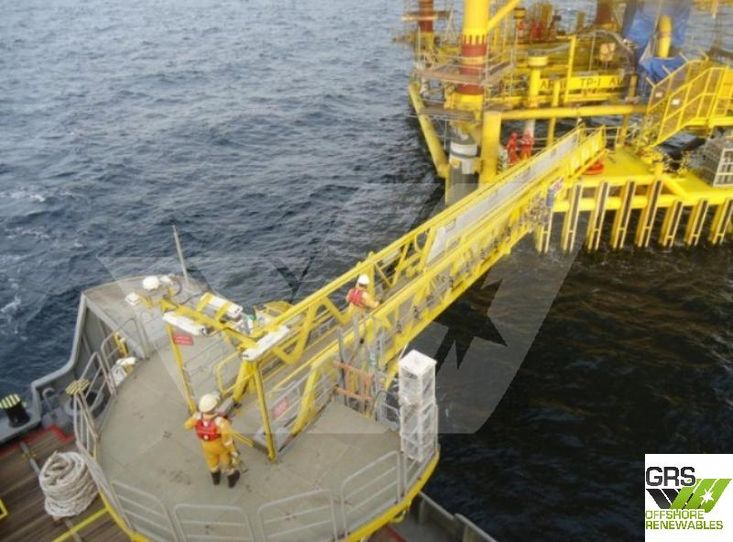

Description

Built: 2016
Make: KENZ
Design code: ABS
Min radius: 15 meters / Max radius: 25 meters
Max load on gangway: 4kN (2 persons including luggage/tools)
Landing cone height: 2.5 m – 13.7 m (SWH 0)
Max operation angles gangway: operational (green) -17º +17º, Alarm limit (orange) -18º +18º, mechanical limit (red) -20º +20º
Slew angle in connected mode: ±20 deg from stern of vessel
Active heave compensation on the luffing motion
Total weight: 33 tons including pedestal adapter

Delivery terms:
Location: Middle East
Delivery time: Prompt
LOA 25 m

Built in year 2016
Class : American Bureau of Shipping

Specifications

Certification
