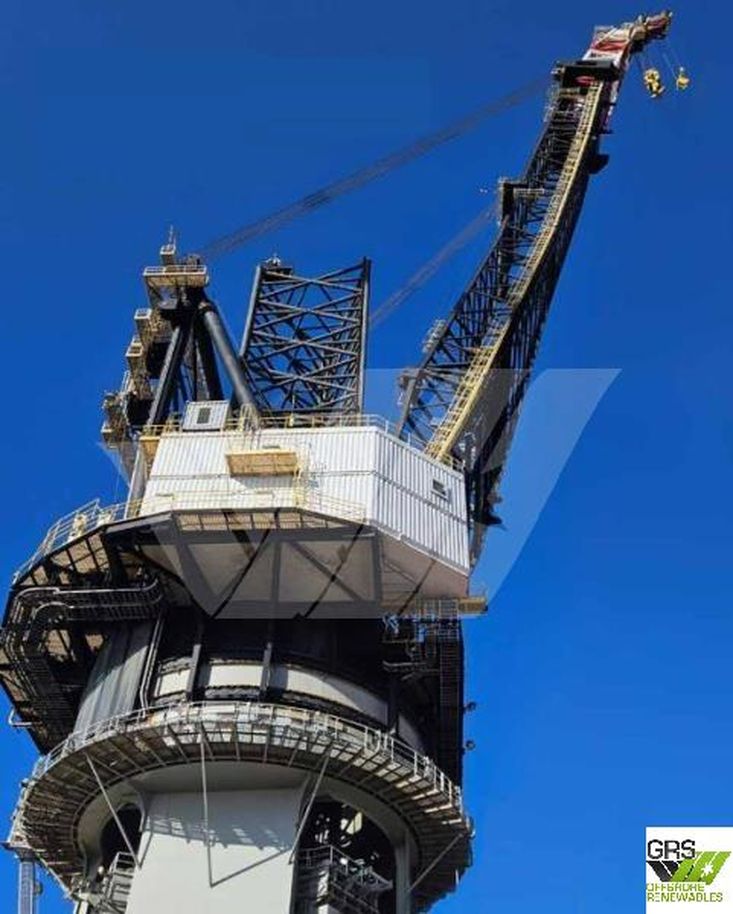

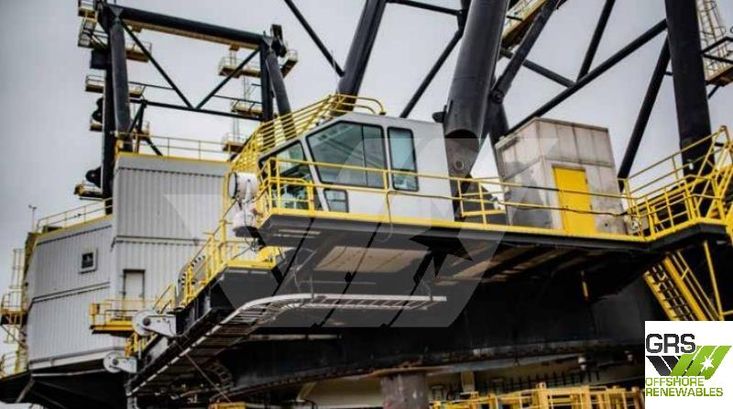

Description

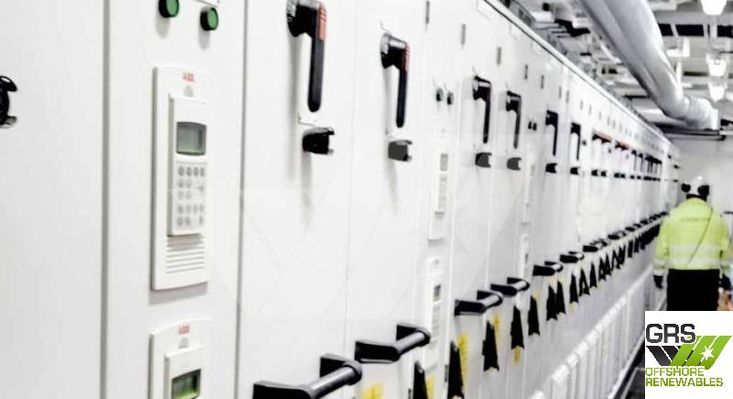

Class DNV incl. man riding Crane Voltage 690V,
Crane equipped with 6,6 KV transformers

Crane Capacities Capacity
Main 1200 t @ 14-31 m, 600t @ 50 m, 250 t @ 70 m
Capacity Aux 500 t @ 20.3-60 m, 120 t @ 100 m
Capacity Whip 50 t @ 22.9-113.4 m
Man-riding capacity 5 ton all radii

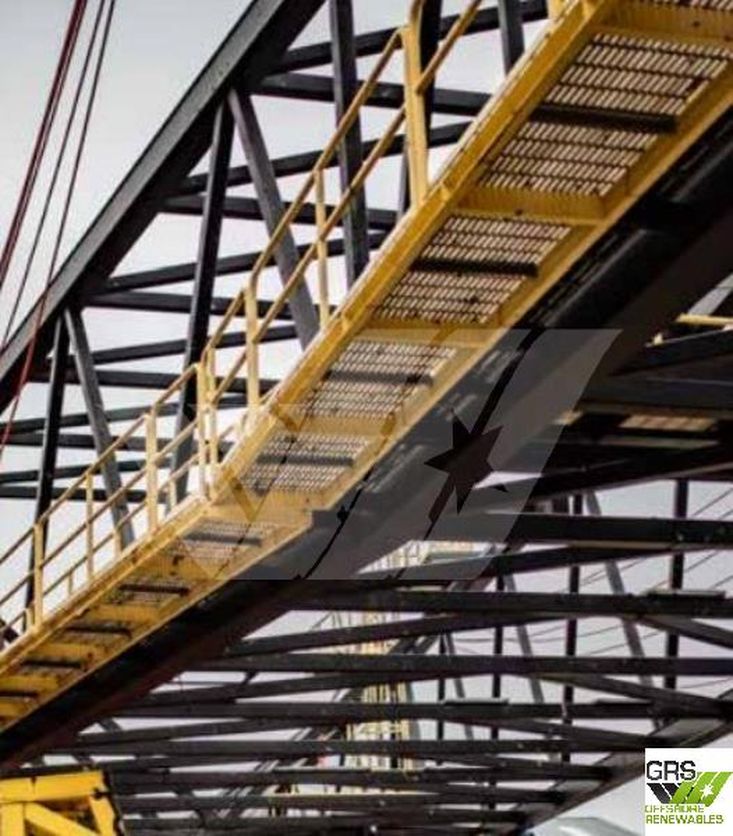

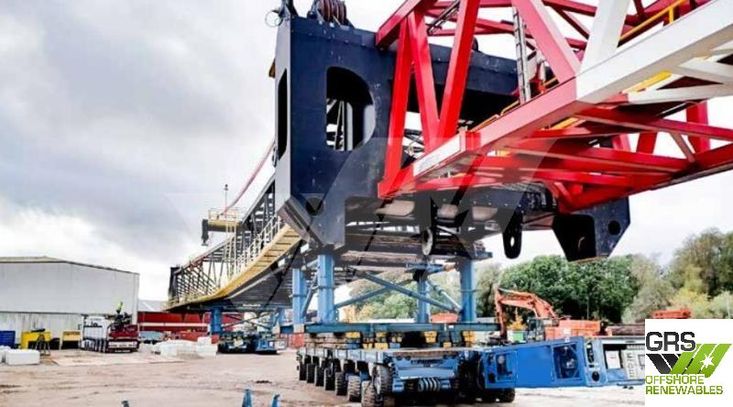

Boom Length (from center line of boom foot pin)
Length to main fall upper block sheaves: 85.5 m
Length to auxiliary fall upper block sheaves: 107.0 m

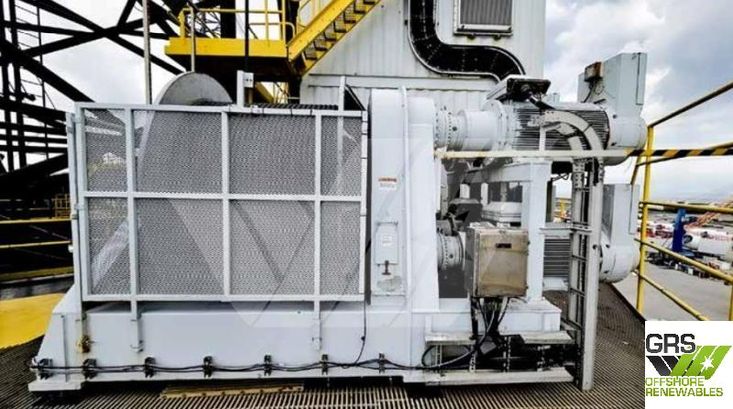

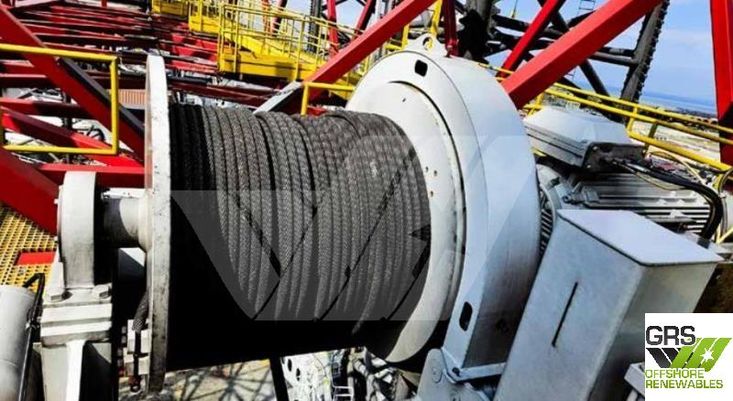

Winches
Main hoist winch 66.8 MT single linepull at 64 m/ min, 4 x 186 KW
Aux hoist winch 68.7 MT single linepull at 62 m/ min, 4 x 186 KW
Whip hoist winch 27.5 MT single linepull at 158 m/min, 4 x 186 KW
Boom hoist winch 2.3 MT single linepull at 26–61 m/min, 3 x 186 KW
Swing drives 6 x 149 KW, Swing speed 0,3 RPM Tugger winches, 4 x load control 25 MT single line at 16 m/min, 75 KW each
Length to whip fall jib tip sheaves: 115.0 m

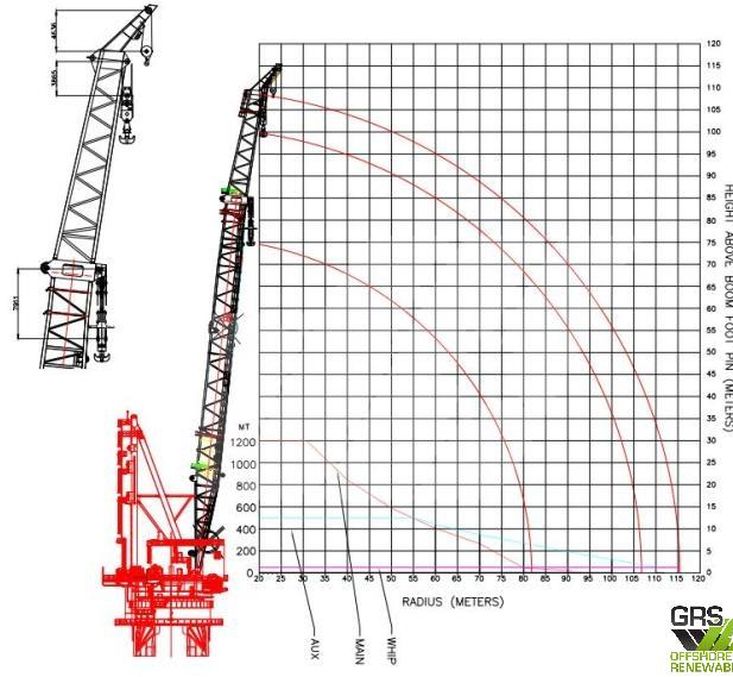

Operating Radius Main fall: 18.0–91.0 m
Auxiliary fall: 20.0–105.0 m
Whip fall: 22.55–113.41 m
LOA 115 m

Built in year 2012

1 Crane / Gear installed with a max lifting capacity of 1200 tons
1 Crane / Gear installed with a max lifting capacity of 500 tons
1 Crane / Gear installed with a max lifting capacity of 50 tons

Specifications

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified

MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network
