Description

Main characteristics
The crane is electro-hydraulically driven

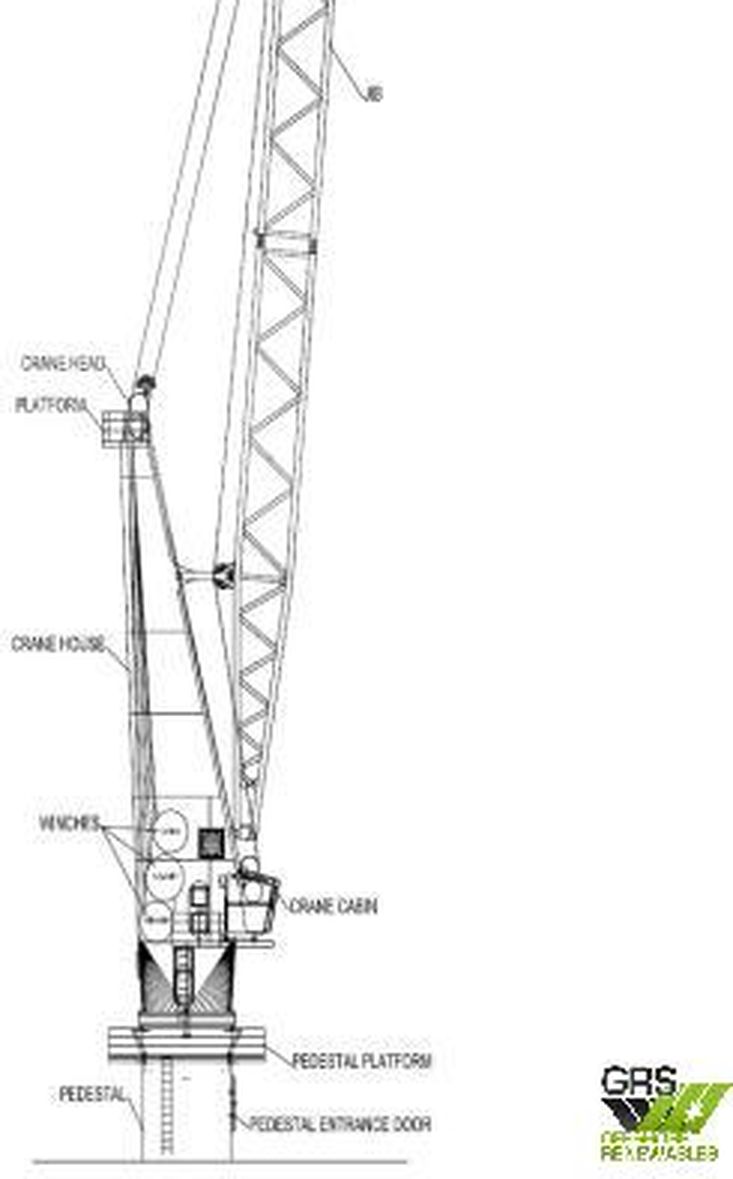

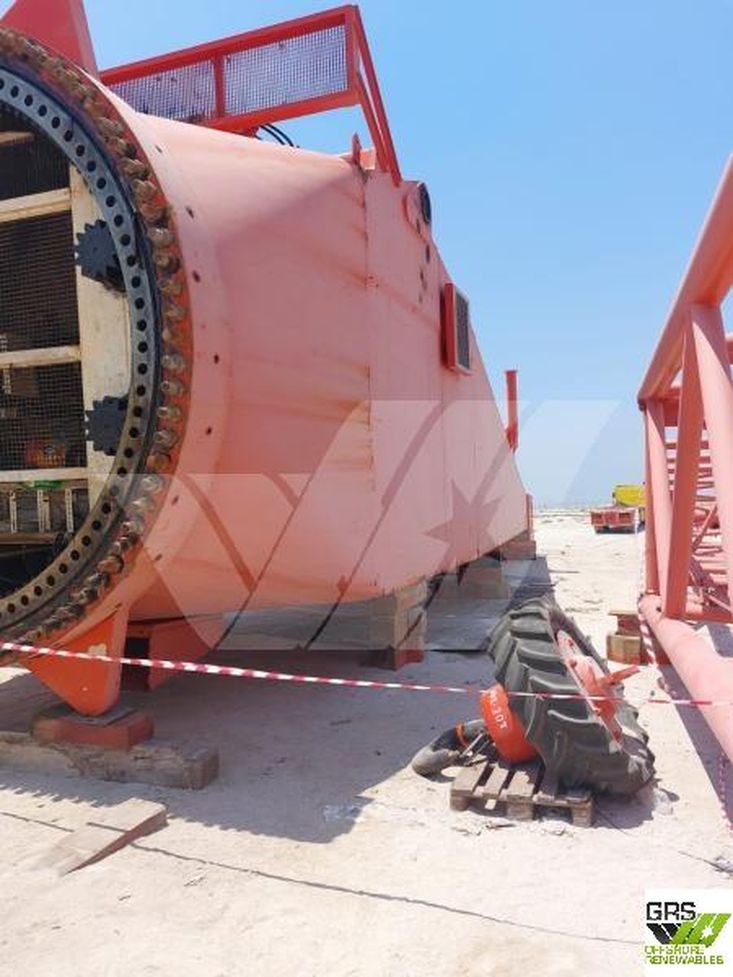

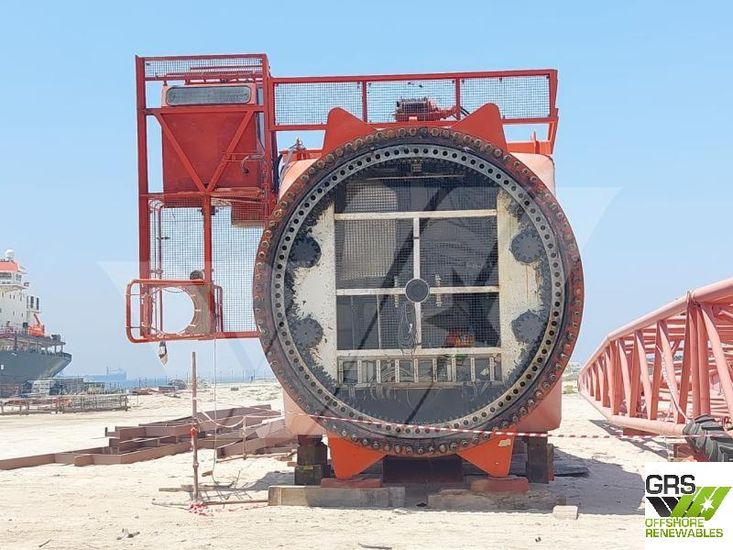

The basis of the crane is the pedestal, which is welded onto the vessel

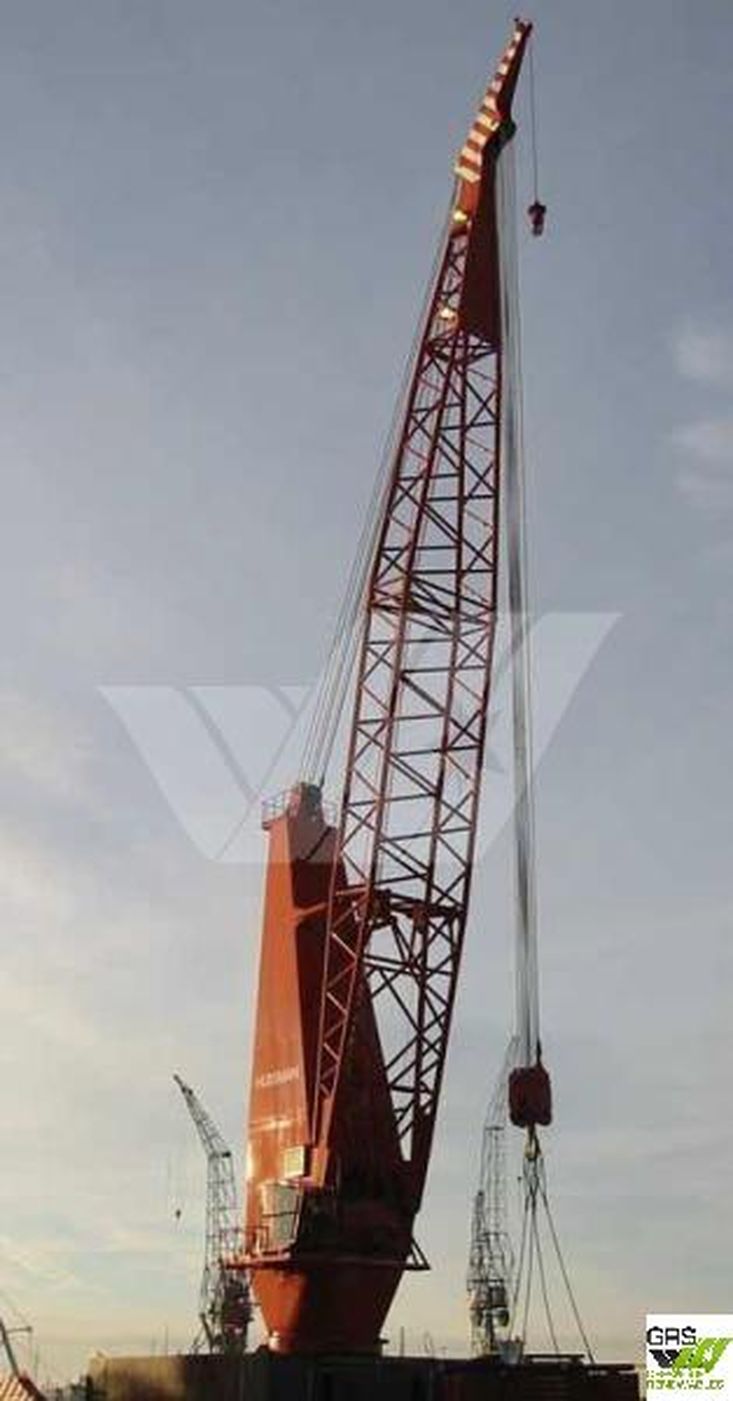

The crane is fully revolving.
The operator cabin is located at the side of the jib and follows the slewing movement.

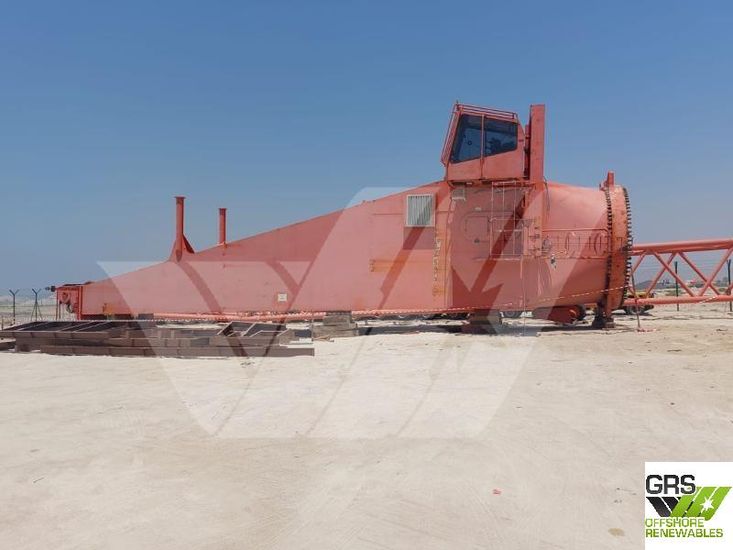

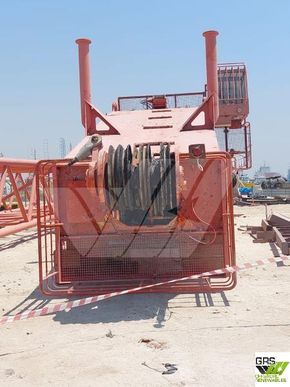

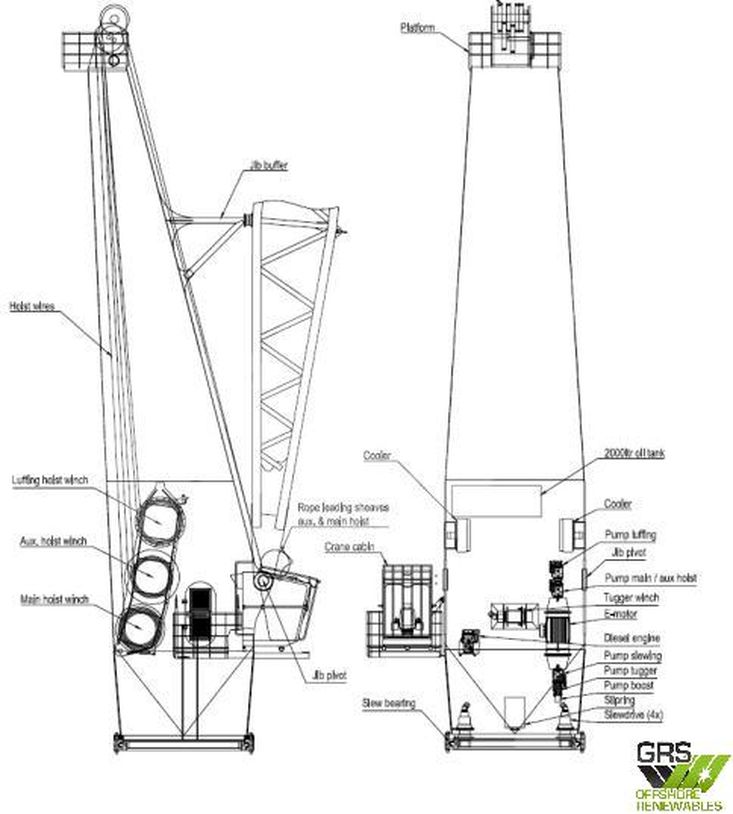

The winches for main hoist, aux. hoist and luffing are built into one common winch frame located inside the crane house
The pivot points of the main jib are based on the crane house

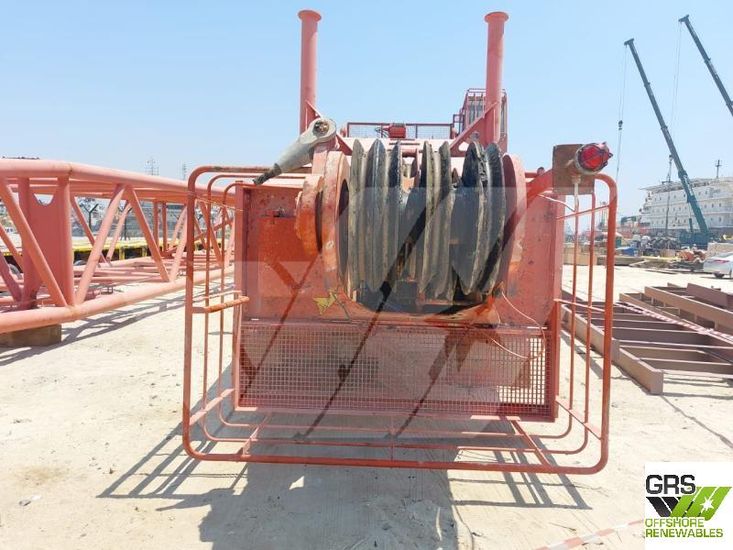

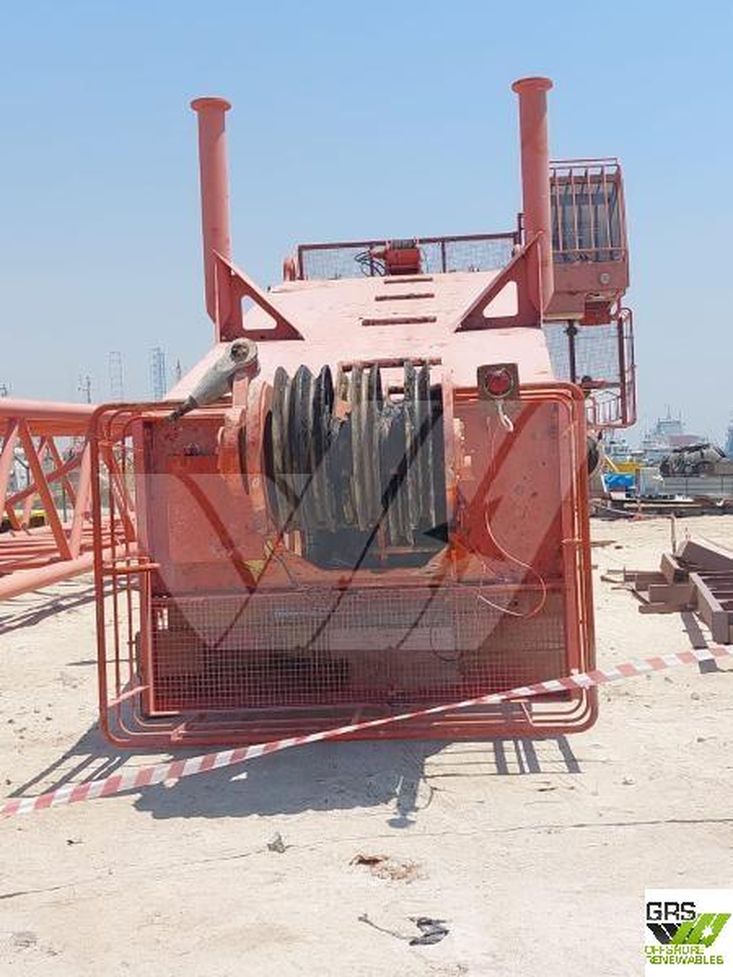

The jib is suspended from the crane top by means of the luffing tackle, which serves to vary the angle of the jib

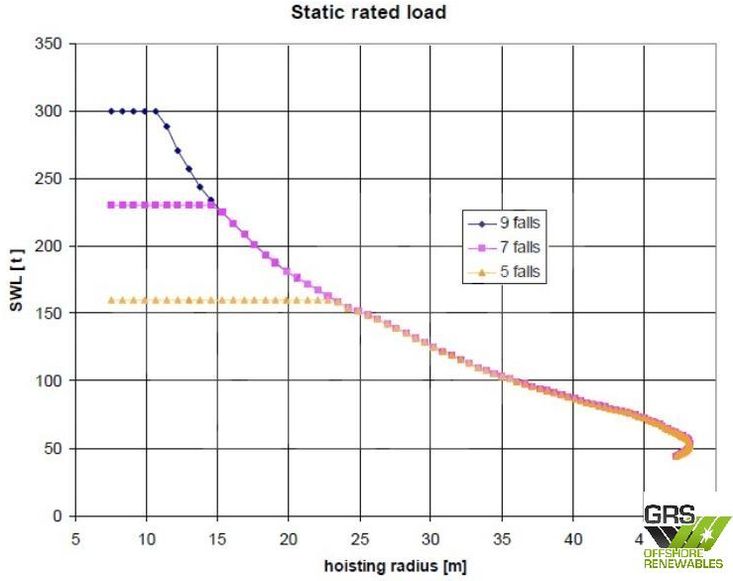

The main hoist tackle can be reeved in 5, 7 or 9 falls (300t only in nine falls configuration)
The crane is equipped with one tugger winch
The crane is equipped with an auxiliary hoist tackle (30mt max.)
The crane has a tailswing of approximately 4.8m radius
An emergency diesel drive aggregate enables to operate the crane in case of a power failure
The aux. hoist is equipped with a constant tensioning control system
The crane is equipped with a remote support system
LOA 51.3 m
Beam 5.9 m

Built in year 2006

1 Crane / Gear installed with a max lifting capacity of 300 tons

Specifications

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified

MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network

Disclaimer

GRS performs its services exclusively on the basis of its General Terms and Conditions, which are available at the GRS website www.grs-offshore.com.
All details are given in good faith but without guarantee. Subject to availability.
